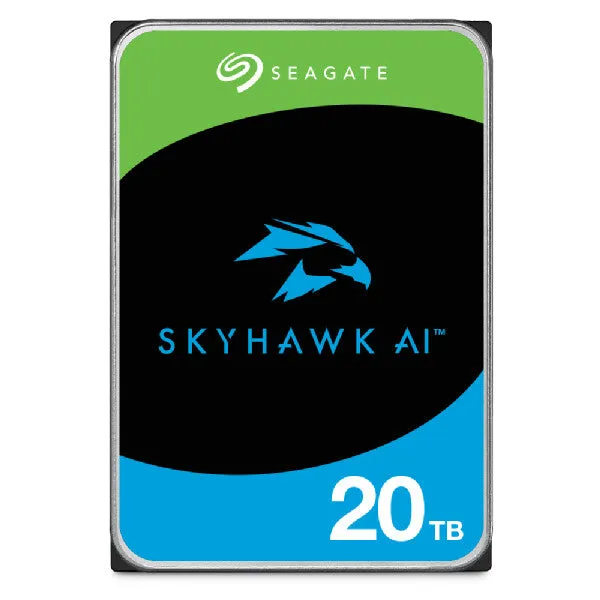

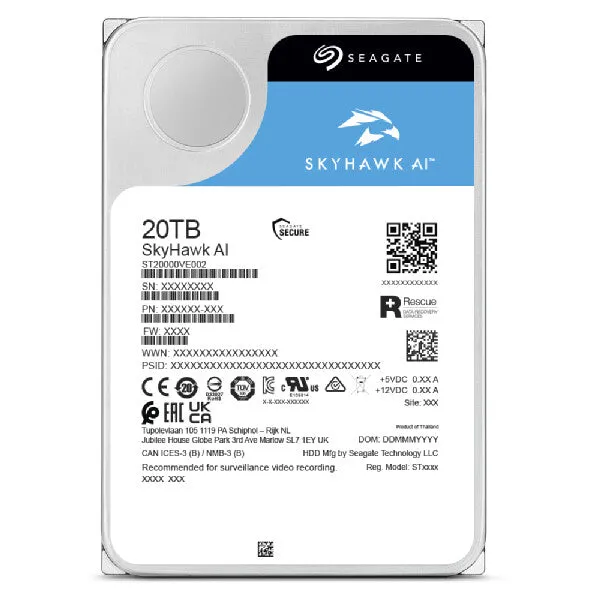

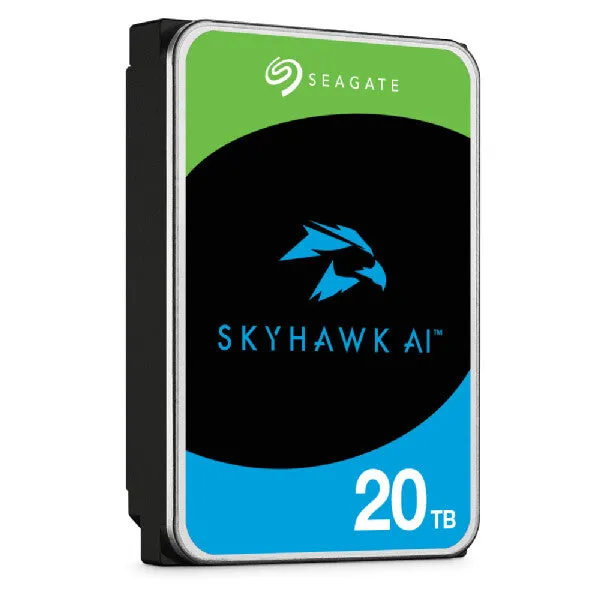

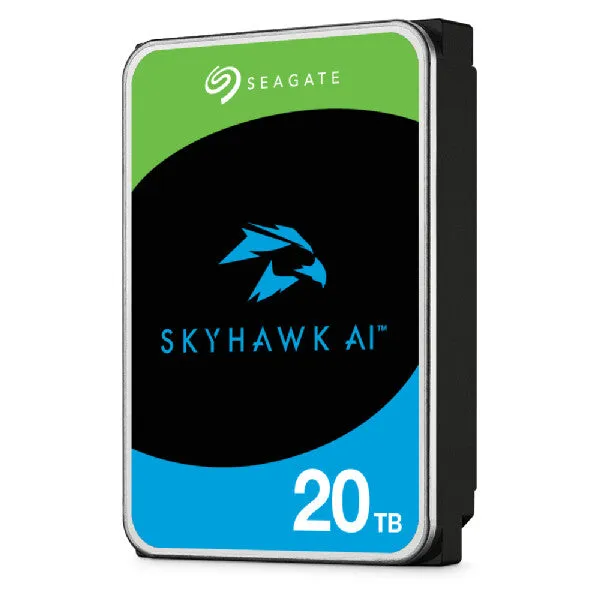

20 TB, 3.5", SATA III, 32 AI Channels
Seagate SkyHawk AI 20 TB. HDD capacity: 20 TB, HDD speed: 7200 RPM, Storage drive buffer size: 256 MB, HDD size: 3.5", Interface: Serial ATA III
A video-optimised drive, SkyHawk AI is designed for NVRs with artificial intelligence for edge applications.
SkyHawk AI
Designed for AI video analytics, SkyHawk AI supports up to 64 HD cameras and 32 additional AI streams while offering capacities up to 20 TB. It delivers zero dropped frames with ImagePerfect AI and has enterprise-class workload rates at 550 TB/yr for high reliability.
SkyHawk
247 workloads can leverage up to 8 TB with drives designed for DVR and NVR systems. SkyHawk video drives are equipped with enhanced ImagePerfect and SkyHawk Health Management to help you sail through your toughest challenges.
Drive Health and Data Recovery
When integrated into compatible NVR systems, these drives provide overall system reliability increases due to SkyHawk Health Management (SHM).1
In addition, the SkyHawk drives include a robust three-year Rescue Data Recovery Services plan.
5 years
| Features |
|---|
| Mean time between failures (MTBF) | 2000000 h |
| Start/stop cycles | 600000 |
| Maximum number of cameras supported | 64 |
| Number of AI channels | 32 |
| Rotational Vibration (RV) sensors | Yes |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^15 bits read |
| HDD sustained transfer rate | 260 MiB/s |
| HDD interface transfer rate | 6 Gbit/s |
| Storage drive buffer size | 256 MB |
| Component for | Surveillance system |
| Type | HDD |
| Interface | Serial ATA III |
| HDD speed | 7200 RPM |
| HDD capacity | 20 TB |
| HDD size | 3.5" |
| Power |
|---|
| Start-up current | 2 A |
| Operating voltage | 5 / 12 V |
| Power consumption (idle) | 3.5 W |
| Power consumption (standby) | 1 W |
| Power consumption (typical) | 7.72 W |
| Operational conditions |
|---|
| Operating temperature (T-T) | 0 - 65 C |
| General |
|---|
| Product family | SkyHawk |
| Technical details |
|---|
| Harmonized System (HS) code | 84717050 |
| Weight & dimensions |
|---|
| Weight | 680 g |
| Height | 26.1 mm |
| Depth | 147 mm |
| Width | 101.8 mm |
| Logistics data |
|---|
| Quantity per master (outer) case | 20 pc(s) |
| Master (outer) cases per pallet | 40 pc(s) |
| Quantity per pallet layer | 8 pc(s) |
